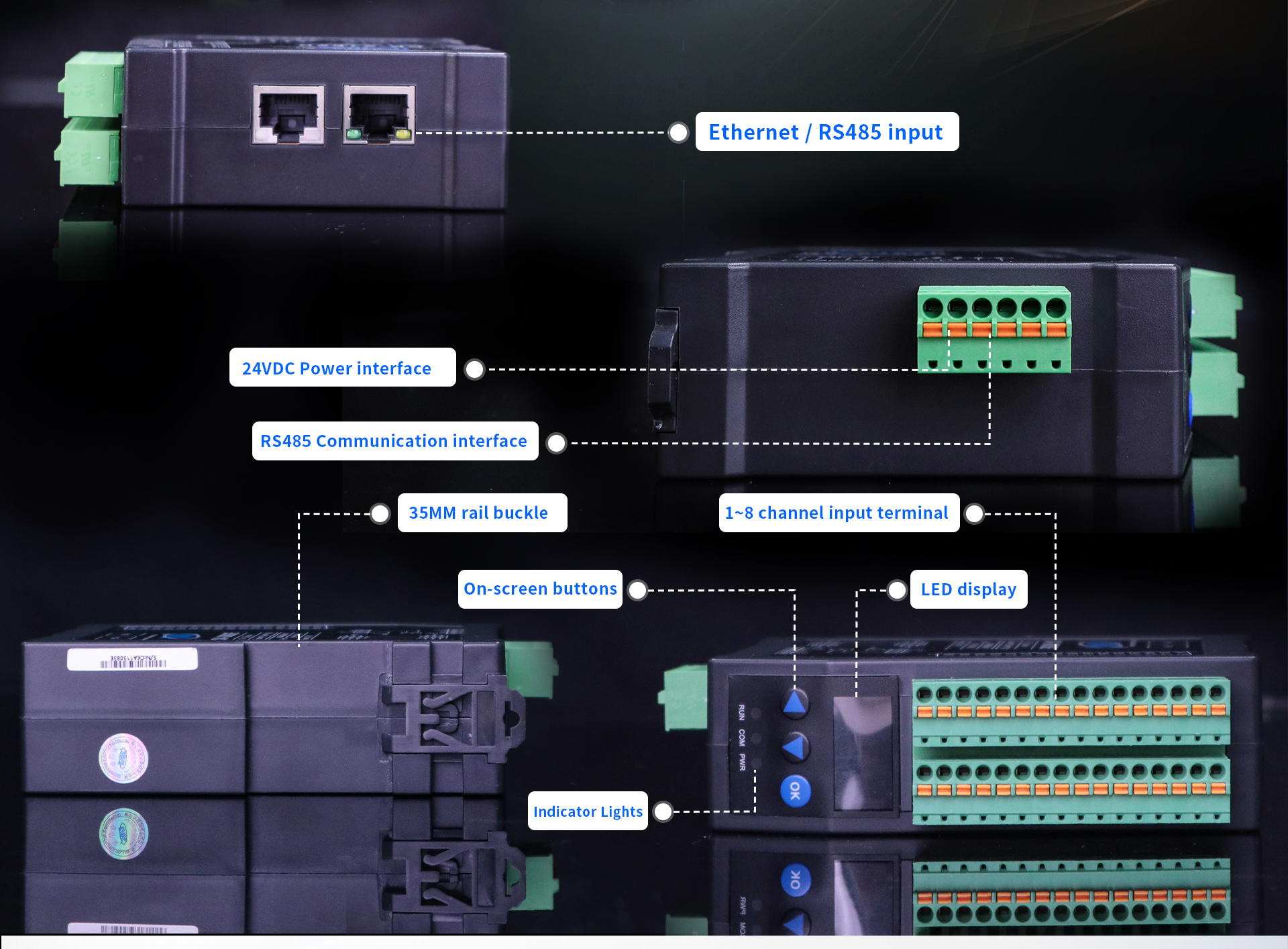

CK-1081E Ethernet RS485 weighing four-wire pressure sensor acquisition module

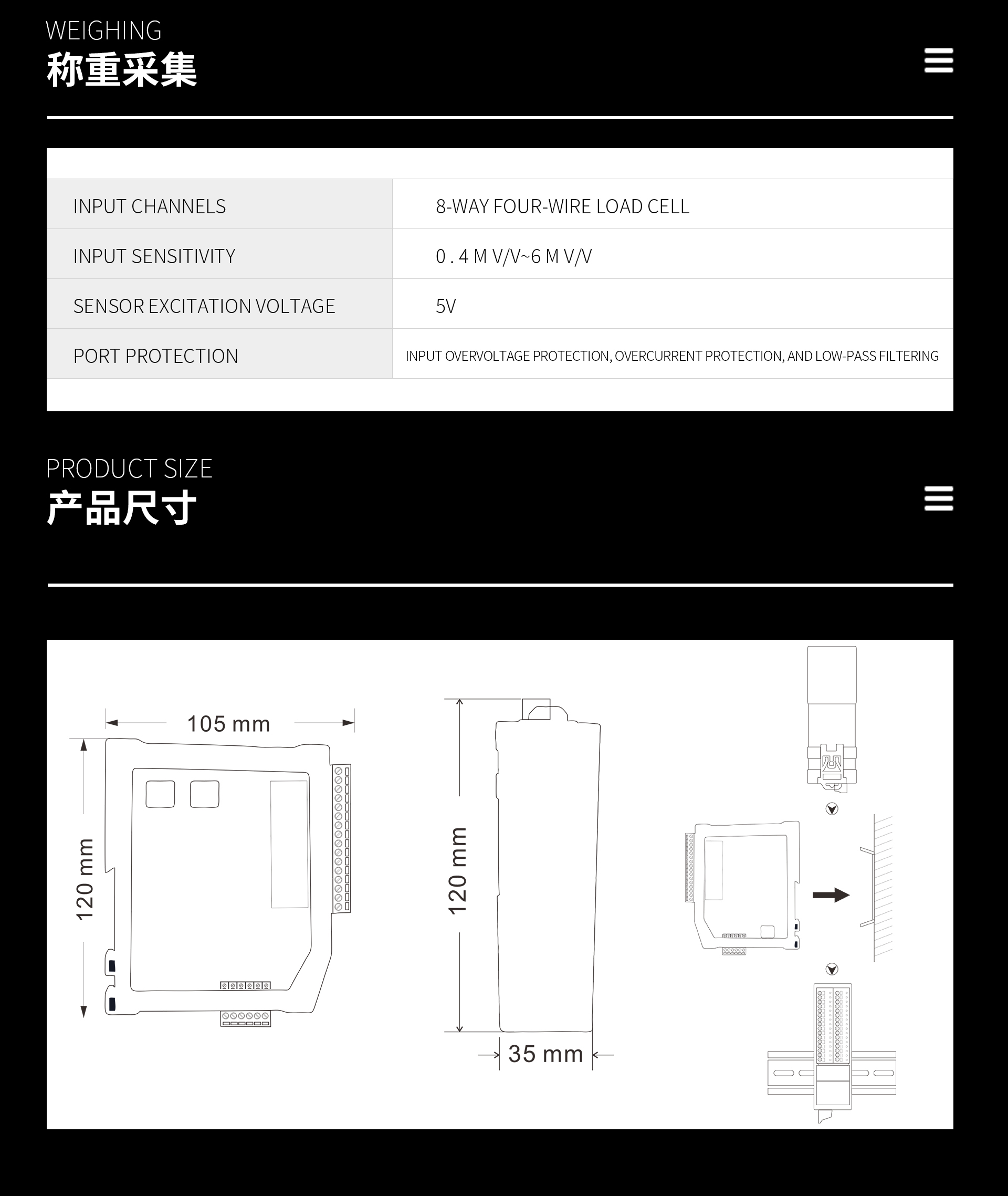

Specification/Strength：8-channel four-wire pressure acquisition module

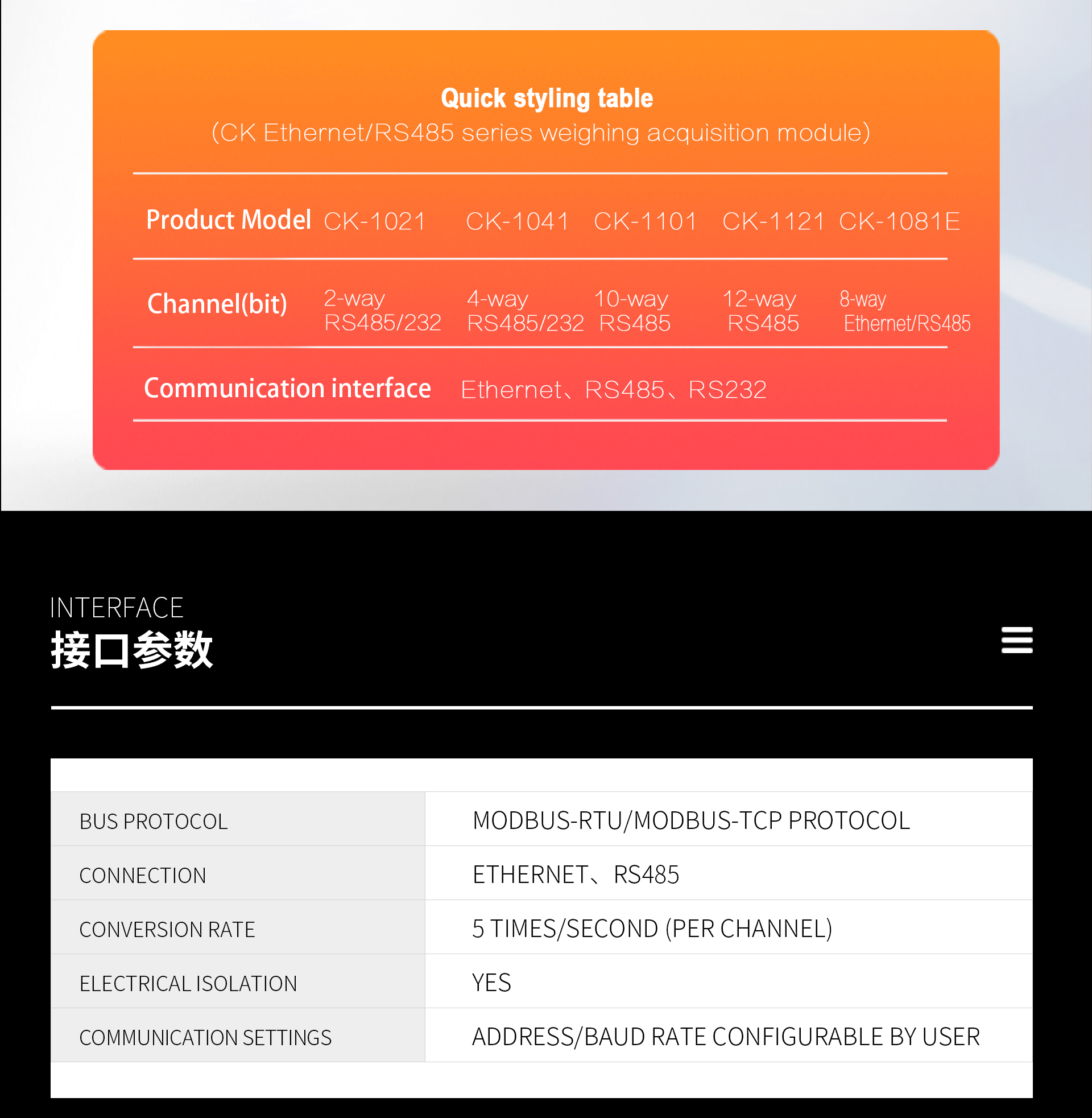

Interface type: Ethernet cascade, RS485
Bus protocol: Modbus-TCP/Modbus-RTU
OLED screen display: supports key adjustment of address, baud rate, check bit, stop bit, IP address

Join Compare Join Selection

Product DescriptionsTechnical ParameterDownload

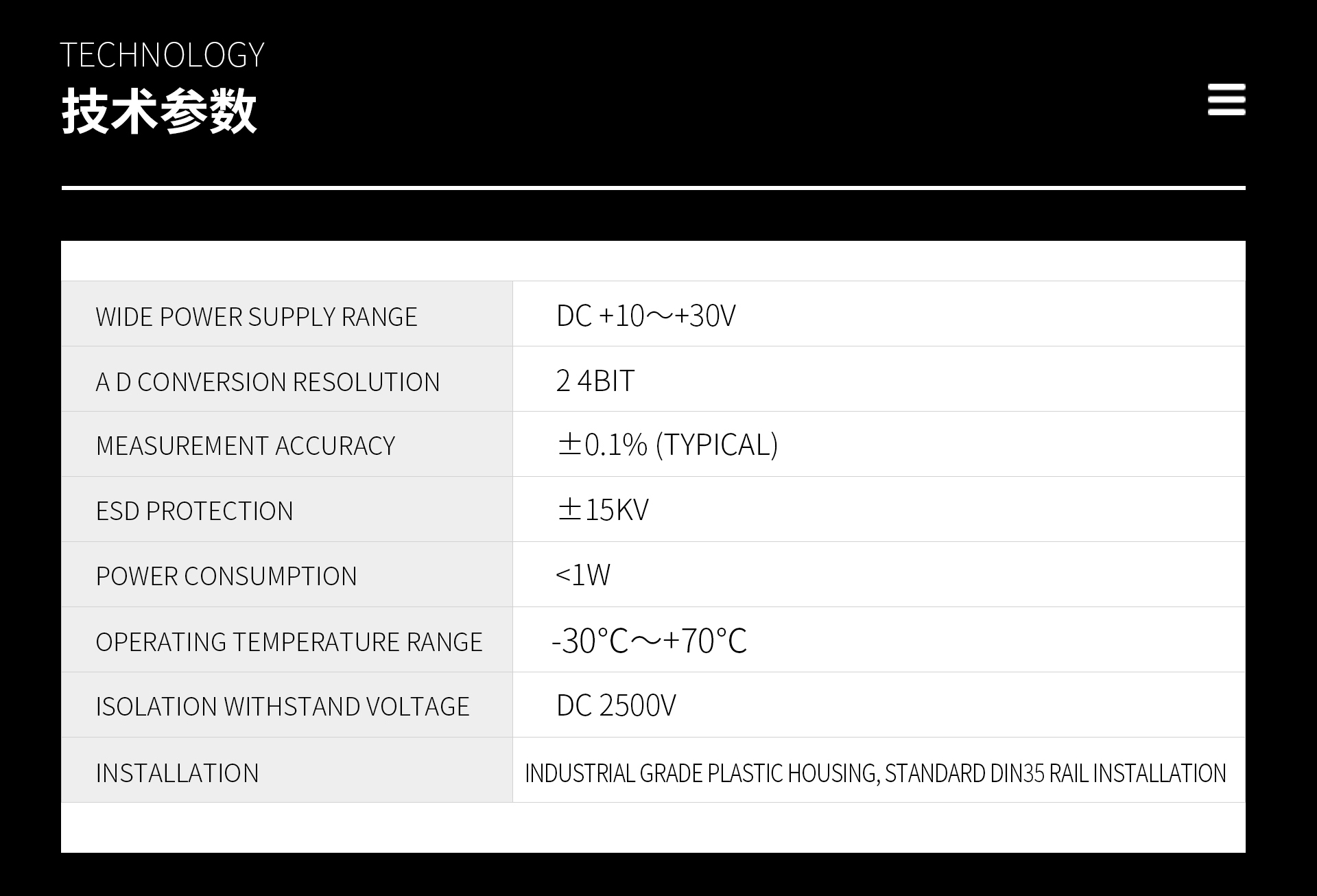

Number of channels

8
Supply voltage

10~30V DC
Communication Interface

RS485+Ethernet
Conversion accuracy

±0.05%
Working temperature

-30℃~70℃
Communication speed

Default 9600bps (up to 115200bps)
Communication Protocol

Standard Modbus-TCP and Modbus-RTU protocols
Isolation withstand voltage

DC 2500V
Conversion speed

5 times/second (per channel)

Documents

Procedures

Weiluntong Chengkong module modbus tcp example

Mitsubishi Chengkong module modbus tcp example

Omron Chengkong module modbus tcp example

Kunlun Tongtai Chengkong module modbus tcp example

Siemens Chengkong module modbus tcp example

Delta Chengkong module modbus tcp example

Software

Chengkong Blade Module Configuration Tool V3.51

Product debugging software

Data Sheet

CK-1081E Specifications Ethernet RS485 to Modbus-Vr1.0

Application Notes
