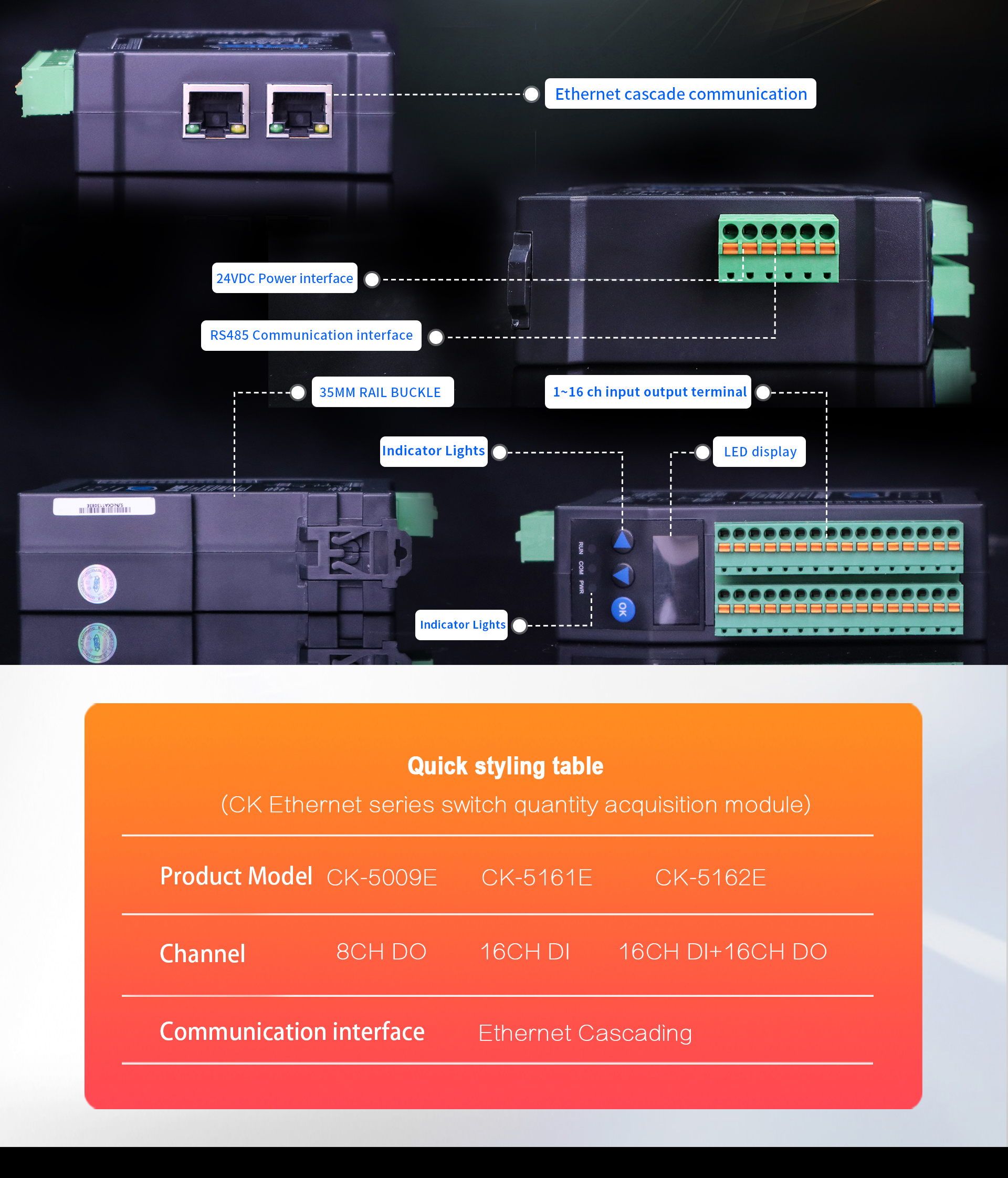

CK-5162E Ethernet cascade remote IO input and output switch digital quantity module

Specification/Strength：16DIDO

Interface type: Ethernet cascade, RS485
Bus protocol: Modbus-TCP/Modbus-RTU
OLED screen display: supports key adjustment of address, baud rate, check bit, stop bit, IP address

Join Compare Join Selection

Product DescriptionsTechnical ParameterDownload

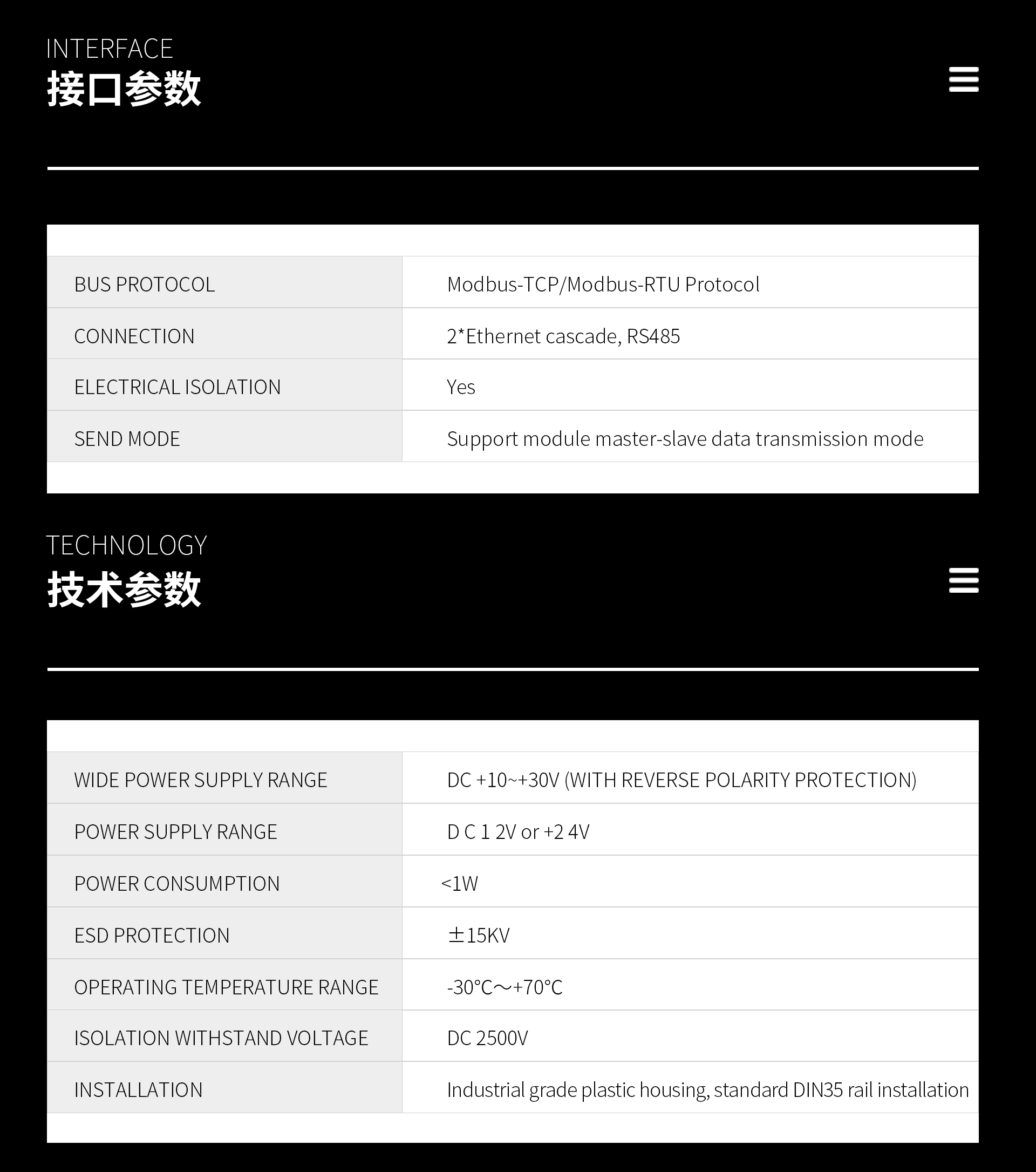

Supply voltage

10~30V DC
Communication Interface

Ethernet Cascading

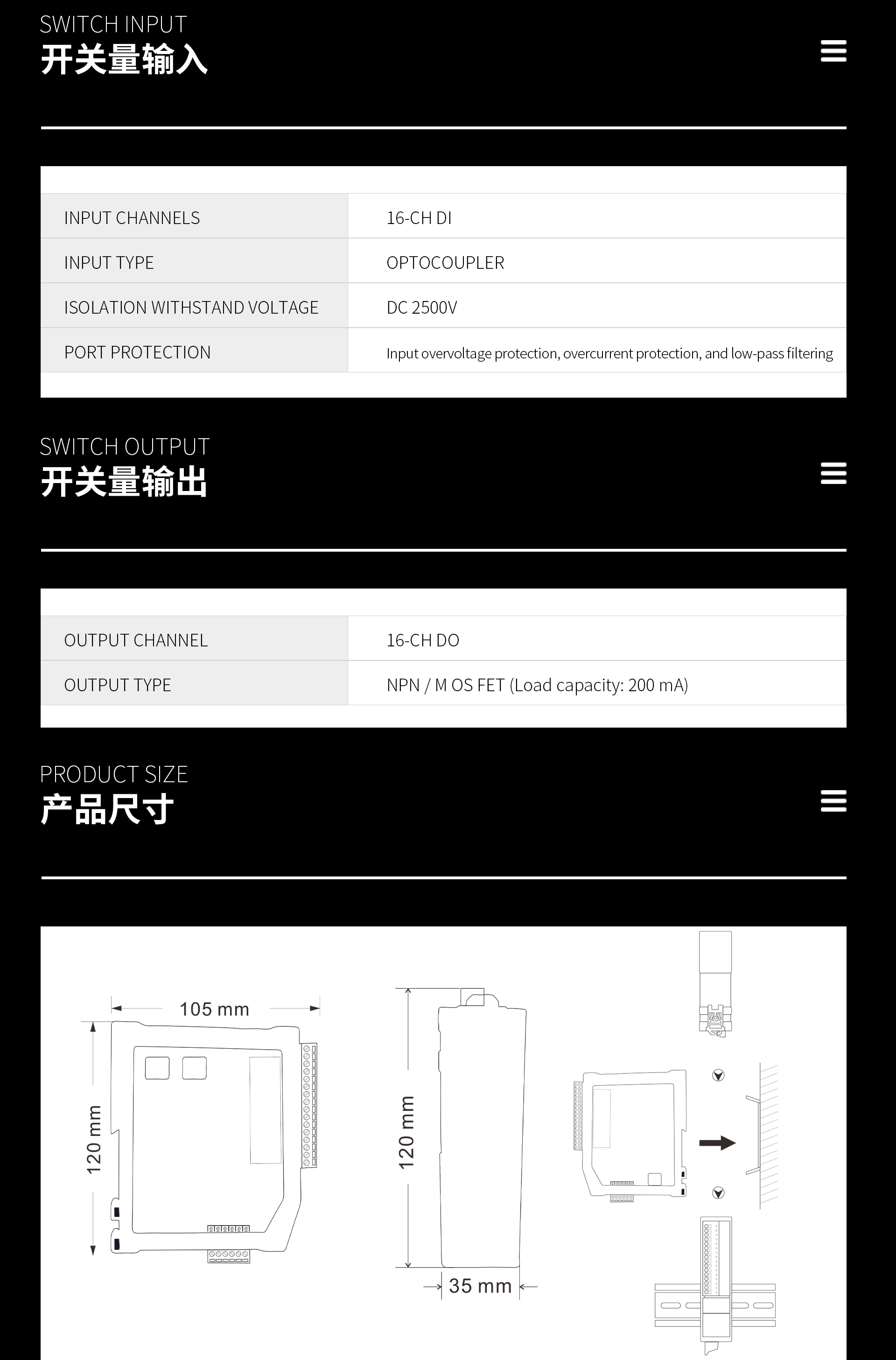

Number of channels

16-channel switching input
Number of channels

16-channel switching output
Communication Protocol

Standard Modbus-TCP and Modbus-RTU protocols
Isolation withstand voltage

DC 2500V

Documents

Procedures

Weiluntong Chengkong module modbus tcp example

Mitsubishi Chengkong module modbus tcp example

Omron Chengkong module modbus tcp example

Kunlun Tongtai Chengkong module modbus tcp example

Siemens Chengkong module modbus tcp example

Delta Chengkong module modbus tcp example

Software

Chengkong Blade Module Configuration Tool V3.51

Data Sheet

CK-5162E-Vr1.0 Ethernet Cascade Switch Input and Output Specifications

Application Notes
