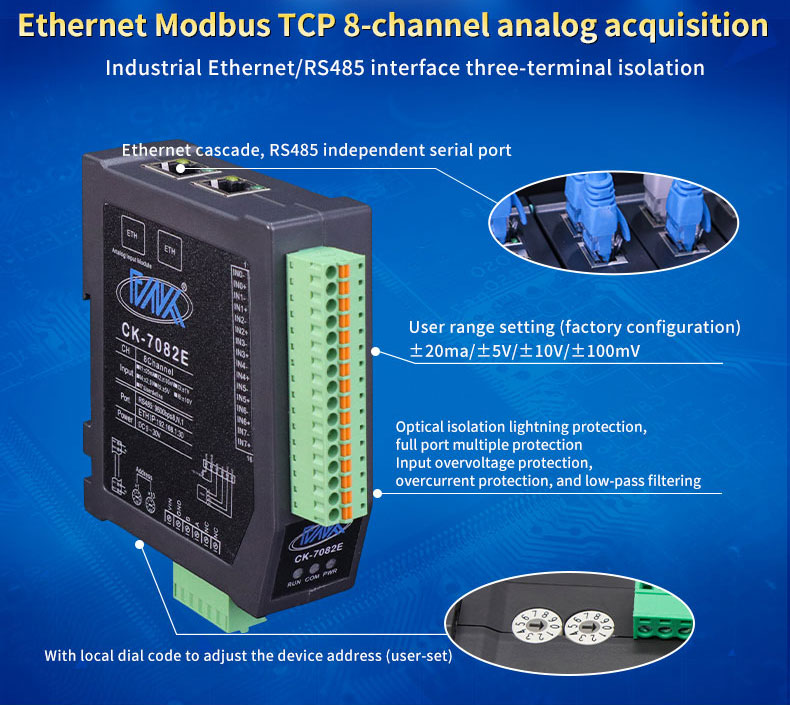

CK-7082E Ethernet cascade analog input 4-20ma/0-5V data acquisition module

Specification/Strength：8-way 4-20ma/0-20ma/0-5V/0-10V/±5V/±10V/±20ma/±100mV

Interface type: Ethernet cascade, RS485
Bus protocol: Modbus-TCP/Modbus-RTU
DIP: Support local DIP address adjustment 1`99

Join Compare Join Selection

Product DescriptionsTechnical ParameterDownload

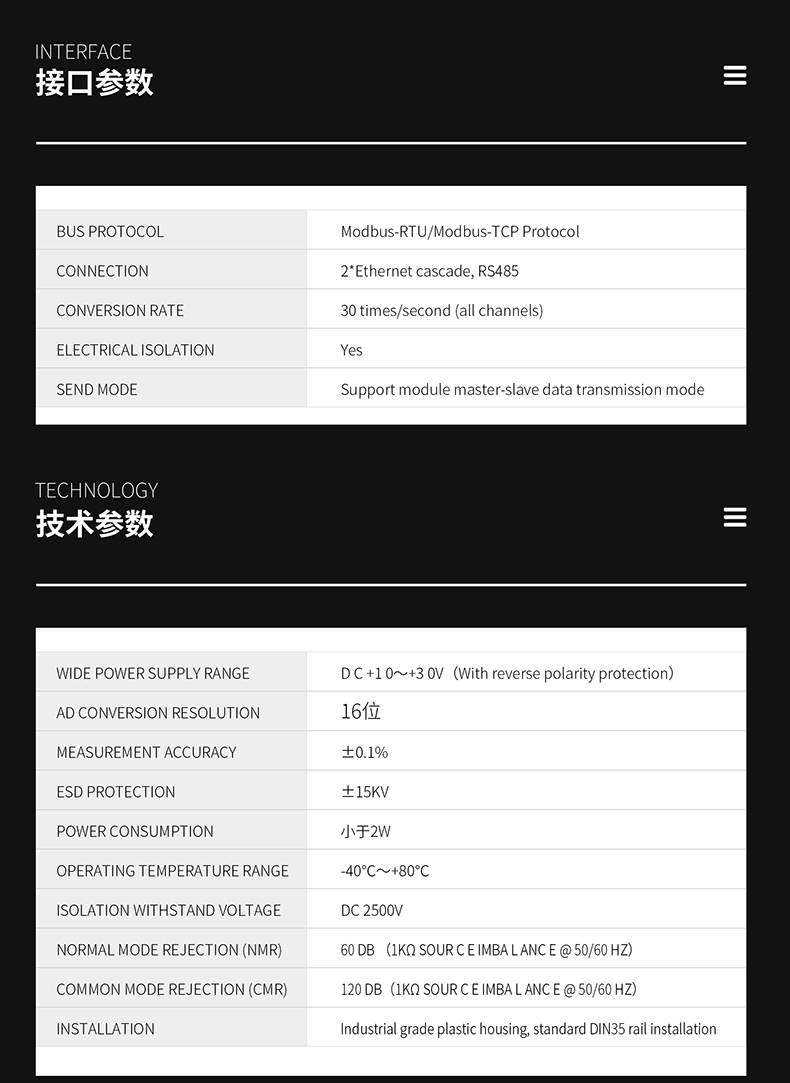

  • ADC Resolution

    16Bit

  • Number of channels

    8

  • Supply voltage

    10~30V DC

  • Conversion speed

    30 times/second (full channel)

  • Communication Interface

    Ethernet Cascading

  • Conversion accuracy

    ±0.1%

  • Communication speed

    Default 9600bps (up to 115200bps)

  • Supply voltage

    24V DC

  • Power consumption

    <2W（@24V DC ）

  • Communication Protocol

    Standard Modbus-TCP and Modbus-RTU protocols

  • Isolation withstand voltage

    DC 2500V

      Documents

      Procedures

    1. Weiluntong Chengkong module modbus tcp example
    2. Mitsubishi Chengkong module modbus tcp example
    3. Omron Chengkong module modbus tcp example
    4. Kunlun Tongtai Chengkong module modbus tcp example
    5. Siemens Chengkong module modbus tcp example
    6. Delta Chengkong module modbus tcp example

      Software

    1. Chengkong Blade Module Configuration Tool V3.51

      Data Sheet

    1. CK-7082E-Vr1.0 Ethernet Cascade 8-ch Analog Input Specifications

      Application Notes
